Home/Visual lessons/Wet vs Dry Pipe: What Is Inside at Standby?
Learn by seeing

Wet and dry describe the arrangement

“Dry” does not mean a system fights fire without water. Compare what is normally in the distribution piping, then take that distinction into a better records conversation.

VISUAL LESSON 02 / CONCEPT & CONTEXT4 ideas to follow
Wet and dry describe the arrangementTwo conceptual cutaway distribution pipes at standby: water in the wet pipe, air or nitrogen in the dry pipe. The water supply and record card are shown separately; there are no valve controls or operating instructions. WET PIPE / STANDBY WATER DRY PIPE / STANDBY AIR / NITROGEN ACTUALRECORDSBOTH AREWATER-BASED
  • Water in wet piping
  • Air / nitrogen in dry piping
  • Actual equipment records
BEFORE ANY ACTIVATION

Compare the standby state

Read the two names as descriptions of different installed arrangements. The cutaways show a standby concept, not a full system design.

Question to take forward

Which system or zone is named in the latest report and drawings?

Choose a step or play the sequence.

The illustration and written steps are available below. Enable JavaScript to use the step controls.

Take this with you

Learn the standby distinction first. Establish the real installation from records and qualified review before planning work.

Conceptual standby cutaways. Colours and symbols identify the medium; they do not show pressure, flow, valve operation, capacity, timing or a design for a building.

Read the four steps

  1. Compare the standby state

    Read the two names as descriptions of different installed arrangements. The cutaways show a standby concept, not a full system design.

    Ask: Which system or zone is named in the latest report and drawings?

  2. Wet pipe contains water

    Wet pipe distribution piping is normally water-filled. Building conditions, exact equipment and design information still matter.

    Ask: Do the available records describe the areas served by the wet pipe system?

  3. Dry pipe contains air or nitrogen

    Dry pipe distribution piping normally contains pressurized air or nitrogen. Water is part of the system, held back by the dry pipe arrangement until it operates.

    Ask: Which equipment documents and qualified service records explain this dry pipe installation?

  4. Bring the records into the decision

    The standby difference alone cannot establish a suitable system, freeze protection, condition or approval. Ask the responsible qualified provider to connect the concept to the actual building.

    Ask: What current information is still needed before a design or service decision?

Read the dry pipe guide ↗Compare four system concepts ↗

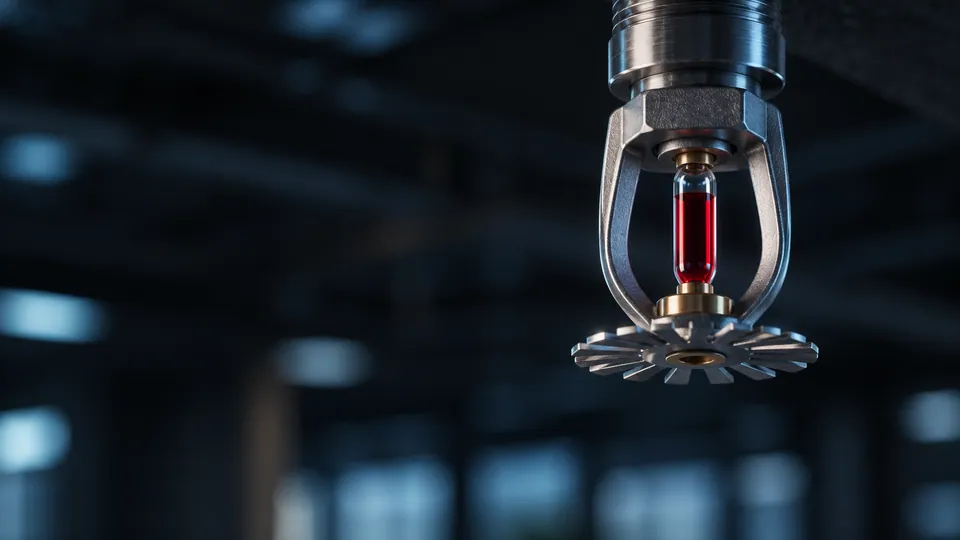

Generic closed pendent sprinkler illustrated in brushed metal with an intact red glass bulb.
Generic component illustration, not an exact manufacturer model or installation specification.

Questions you may have

Does a dry pipe sprinkler system use water?

Yes. Dry pipe is a water-based system. Its distribution piping normally contains pressurized air or nitrogen at standby; the dry pipe arrangement holds water back.

Does the label tell me whether the system is right for my building?

No. Establish the actual design, equipment, building conditions and applicable local requirements with the responsible qualified professionals.

Can a dry pipe label guarantee protection from freezing?

No label establishes the condition of a real installation. Ask the qualified provider how the actual equipment, exposed areas and maintenance records relate to the building’s conditions.

PRIMARY REFERENCES / SCOPE

References and scope

  1. Types of fire sprinkler systems — National Fire Sprinkler Association. System overview explaining the wet and dry pipe standby distinction. Establish a real installation’s design and applicable Canadian requirements separately. Link reviewed 2026-10-03.

Review dates identify source-link checks, not professional certification or a building-specific determination. Confirm current jurisdiction and exact-model requirements for actual work.
